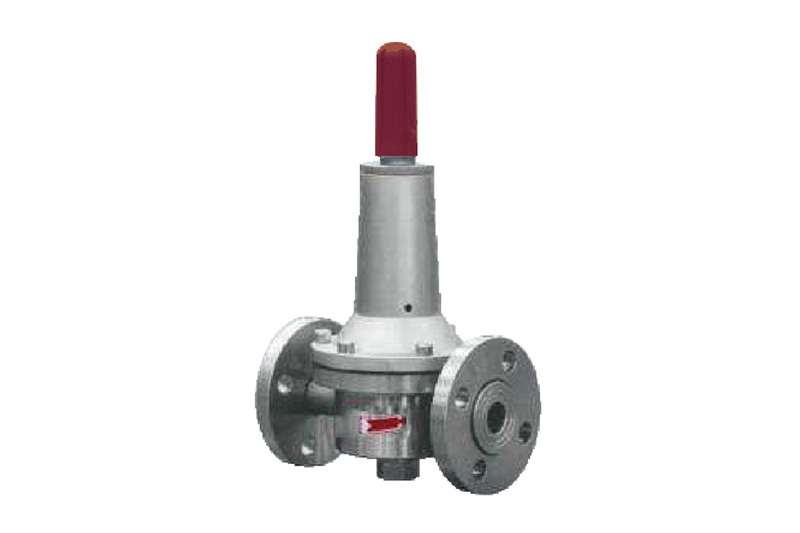

Classification: Gas Pressure Regulator
Release time: 04-01-2024
Number of views: 45
Product details
Structural Configuration:
Reliability
Completely Sealed at Zero Flow
Wide Pressure Regulation Range
Compact Size
Direct Connection to Inlet and Outlet Pipelines
All Internal Components and Valve Body Made of 1Gr18 Material
Inlet Pressure Up to 16 bar
Flow Rate Up to 80 Nm3/h
Specially used for automatic pressure regulation and control of media such as hydrogen, oxygen, nitrogen, and ammonia.
Technical Specifications:
Inlet Pressure: P1 ≤ 1.6 Mpa
Outlet Pressure Range: P2 = 0.05 Mpa to 0.2 Mpa (adjustable)
Pressure Regulation Accuracy: δP ≤ ±10%
Rated Flow Rate: Q ≤ 80 Nm3/h (natural gas)
Nominal Diameter: NPT3/4", NPT1"
Connection Type: Threaded connection
Operating Temperature: -10℃ to 60℃
Ambient Temperature: -20℃ to 80℃
