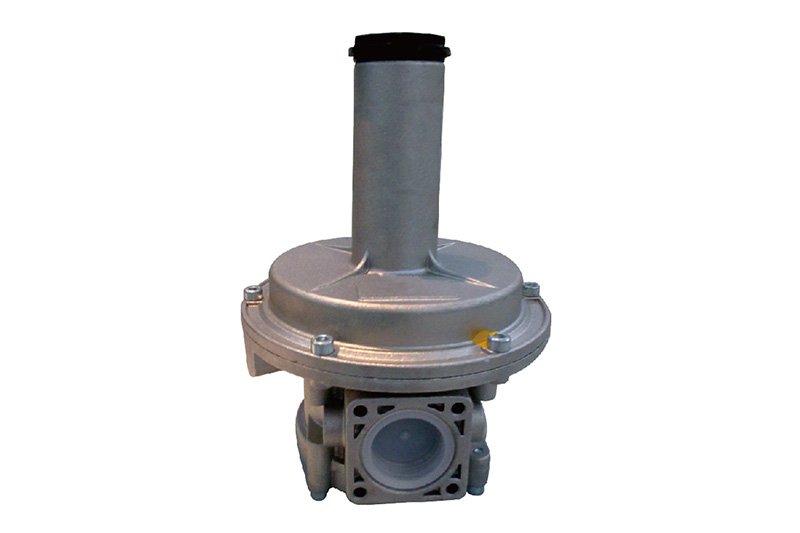

Product details
Structural Configuration:
High Precision in Pressure Regulation
Reliable Shut-off
Damping meets UNI-EN88 and UNI-EN161 standards
Operated by spring tension opening the gate, no auxiliary energy required
Inlet pressure compensation, standard safety diaphragm for rapid sealing
Used in burner systems, industrial transmission and distribution, and urban residential applications
Suitable for: city gas, natural gas, liquefied petroleum gas, other non-corrosive gases, and air. Aluminum valve body; internal components made of aluminum, steel, brass, and synthetic materials; diaphragm and gaskets made from nitrile and polybutadiene rubber.
Technical Specifications:
Inlet Pressure: P1: 2 kpa - 130 kpa (20 mbar - 1.3 bar)
Outlet Pressure: P2: 0.8 kpa - 50 kpa (8 mbar - 500 mbar)
Flow Range: 40 - 3000 Nm3/h (natural gas)
Pressure Regulation Accuracy: ±5%
Shut-off Pressure: ≤1.2P
Connection Types:
Threaded interface (DN20-DN50) conforming to ISO228/1
Flanged interface (DN25-DN100) conforming to ISO7005
Operating Temperature: -10℃ to +60℃
Nominal Pressure: PN16
