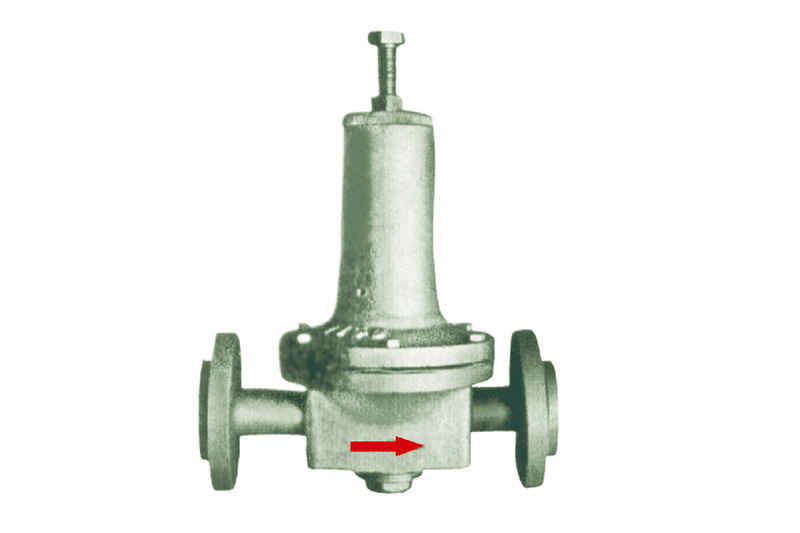

Structural Configuration:

Reliability

Completely Sealed at Zero Flow

Wide Pressure Regulation Range

Compact Size

Direct Connection to Inlet and Outlet Pipelines

Inlet Pressure Up to 16 bar

Flow Rate Up to 200 Nm3/h

Suitable for high and medium pressure automatic pressure regulation systems in gas transmission and distribution networks. Widely used for automatic pressure regulation and control in urban residential areas, industrial and mining enterprises, and thermal processing of liquefied petroleum gas vaporization and distribution.

Technical Specifications:

Inlet Pressure: P1 ≤ 1.6 Mpa

Outlet Pressure Range: P2 = 0.02 Mpa to 0.06 Mpa (adjustable)

Pressure Regulation Accuracy: δP2 ≤ ±10%

Rated Flow Rate: Q ≤ 200 Nm3/h (natural gas)

Nominal Diameter: DN25, DN40, DN50

Connection Type: Flange connection

Operating Temperature: -10℃ to 60℃

Ambient Temperature: -20℃ to 80℃

Valve Body Connection Length: L-340mm
