Classification: Gas Pressure Regulator
Release time: 04-01-2024
Number of views: 91
Product details

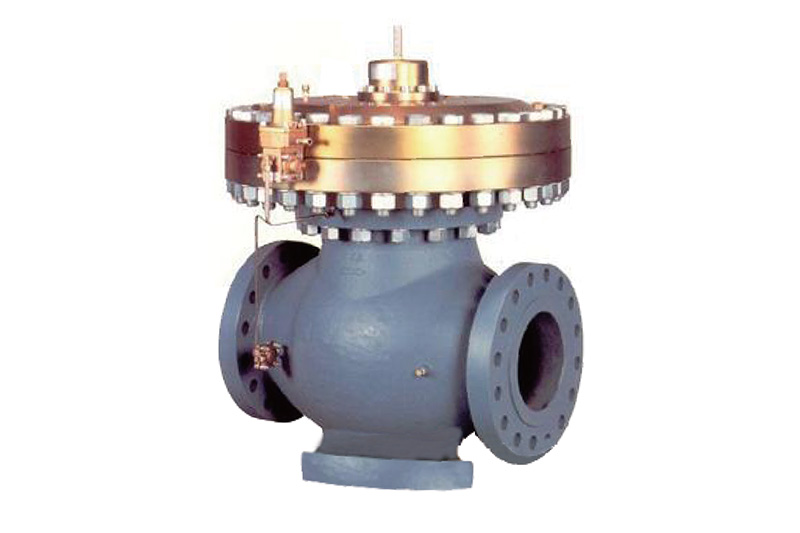

The DCTA/J300 series regulators provide economical and precise pressure control for various applications, including fuel gas supply for industrial boilers, gas supply for furnaces and rubber refining machines, natural gas systems, and applications in steel mills, asphalt manufacturing facilities, and other commercial or industrial enterprises.
Their outstanding performance is attributed to the amplifying function of the pilot and the dual-channel control system. Changes in outlet pressure are quickly reflected on the diaphragm of the actuator, enabling rapid response. The pilot amplifier system's variation locates the main valve, achieving precise control.
Advantages:
Easy adjustment and maintenance, can be maintained online.
No atmospheric leakage.
Reduced noise performance.
Operating Parameters:
Inlet Pressure: 0.035~0.4 MPa
Outlet Pressure: 0.025~0.05 MPa
Flow Rate: Above 12000 Nm3/h
Applicable Media: Town gas (methane), non-corrosive gases
Operating Temperature: -20℃ to 60℃
Ambient Temperature: -30℃ to 80℃
Connection Type: Flange connection DN300 PN16
