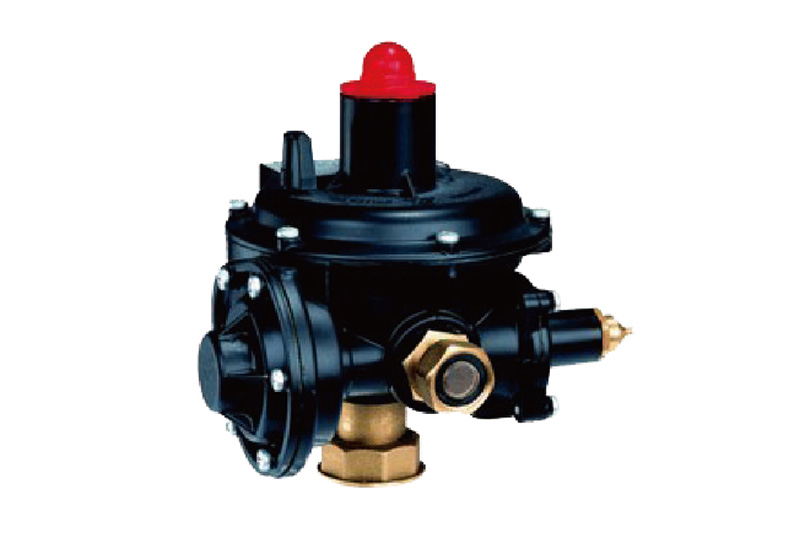

Classification: Gas Pressure Regulator
Release time: 04-01-2024
Number of views: 54
Product details
Optional Configurations:
Without relief valve
Without low-pressure cut-off device
Inlet and outlet flanges horizontally connected DN25 PN16 UNI/DIN
Flat soft seal
Spherical cone metal-to-metal seal
Inlet and outlet with rotating nut sleeve horizontal connection
Suitable for manufactured coal gas, natural gas, liquefied petroleum gas, and other non-corrosive gases.
Technical Characteristics:
Maximum Inlet Pressure Allowed:
EJ type, EP type: Pe, max: 6 bar
EJ-H type, EP-H type: Pe, max: 10 bar
Inlet Pressure Range:
EJ type, EP type: bpe: 0.1~6 bar
EJ-H type, EP-H type: bpe: 0.1~10 bar
Pressure Setting Range:
EJ type, EP type: Wh: 15~70 mbar
EJ-H type, EP-H type: Wh: 70~300 mbar
Regulation Accuracy AC: ≤±5%
Shut-off Pressure SG: ≤±10%
Flow Rate (Natural Gas) Q: ≤ 100 Nm3/h
Internal Overpressure Cut-off Valve
Automatic Pneumatic Control
Overpressure Cut-off Setting Pressure Who: 30380 mbar, 8155 mbar
Cut-off Precision AG: ±5%
Response Time ta: ≤1 sec.
Regulating Valve Orifice Diameter: 19/32”
Threaded Connections: ?” x G14 BSP (G” x 14” male thread); 1” BSP (1” male thread)
Temperature:
Operating Environment: -20℃ to +60℃
Ambient Temperature: -30℃ to +60℃
